Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« on: October 14, 2013, 2228 UTC »
6924.65 AM
ID at 2239z.
About an S8 here.

« Last Edit: October 14, 2013, 2240 UTC by ChrisSmolinski »
Logged
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline jFarley

  • Marconi Class DXer
  • ********
  • Posts: 5921
    • near Chicago
    • View Profile
    • Email
Re: UNID 6925 AM 2227 UTC 14 Oct 2013
« Reply #1 on: October 14, 2013, 2231 UTC »
2226 carrier on
2226 YL dance track

S6 and fady
Logged
Joe Farley, Near Chicago
SDR-IQ / R8 / R7
Remote Resonant Loops for HF and LF / ALA 1530
Active 60" Whip / PA0RDT
QSLS appreciated to:    jfarley44@att.net

Offline ChrisLobdell

  • Global Moderator
  • DXing Phenomena
  • *****
  • Posts: 4659
    • Massachusetts
    • View Profile
    • Email
Re: UNID 6925 AM 2227 UTC 14 Oct 2013
« Reply #2 on: October 14, 2013, 2231 UTC »
Music started at 2229, about S-7 here  Echo 1? Yup ID 2231
Thanks for the Lorde song!!
SSTV 2251
225 GSTQ what else? lol.
Thanks for the dedication E1
« Last Edit: October 14, 2013, 2256 UTC by Chris Lobdell »
Logged
Receiver: Tecsun S-2200x, JRC NRD-525, 535 and 545, Icom IC-7300
Aerial: MFJ G5RV dipole
near Lowell Massachusetts - Gateway To The Merrimack Valley.
All loggings are from my QTH with my equipment unless stated otherwise.
QSL to: crlobdell1@gmail.com or
Box 80146, Stoneham, MA 02180
Amateur Radio Station: KC1IUK

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32511
    • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: UNID 6925 AM 2227 UTC 14 Oct 2013
« Reply #3 on: October 14, 2013, 2234 UTC »
Yes, music now. Nothing I recognize yet :-)
Logged
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline halifaxtap

  • Full Member
  • ***
  • Posts: 217
    • Halifax, NS
  • No pirates down here..
    • View Profile
    • Radio website
    • Email
Re: UNID 6925 AM 2227 UTC 14 Oct 2013
« Reply #4 on: October 14, 2013, 2238 UTC »
S7-9 here
2238..rock tune
2238  Radio Echo 1  ID
2241 On East-West line to me,
2242 Address for reception reports, ID
Audio a little distorted
2246 Shoutout to Chris Lobdell, and song dedication
2252 SSTV.. I am not decoding this very well... ah there we go.. A union Jack
2252  God Save the Queen
2256  Off
« Last Edit: October 14, 2013, 2256 UTC by halifaxtap »
Logged
Overlooking Halifax Harbour, NS
Antennas:80M OCF dipole, 40M end fed, 50ft verticals, Active 1 Meter mag loop, SAL-20
IC7700, R390A, SB310, assorted TecSun's, SDR-IQ... others...

Offline ulx2

  • Hero Member
  • *****
  • Posts: 658
    • Kyiv, Ukraine
    • View Profile
    • My DX blog
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #5 on: October 14, 2013, 2256 UTC »
Only a carrier here.
Logged
LOC: Kyiv, Ukraine
RX1: Degen DE-1103 portable
RX2: Xhdata D-808 portable
RX3: Airspy Mini SDR + Spyverter
ANT1: 80 mb dipole
ANT2: Long wire (10 meters)
ANT3: Homemade M0AYF active loop
ACC: Homemade passive preselector & phasing device

https://udxb.blogspot.com/

Offline myteaquinn

  • Marconi Class DXer
  • ********
  • Posts: 7227
    • View Profile
    • Email
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #6 on: October 14, 2013, 2259 UTC »
Kind of a crappy image thanks to the band conditions here.



By the way thanks for the program Radio Echo One.
« Last Edit: October 14, 2013, 2313 UTC by myteaquinn »
Logged
Northeast Ohio
Now using Shazam for song identification
myteaquinn@yahoo.com

Offline Echo_One

  • Group W Bench
  • Sr. Member
  • *
  • Posts: 418
    • Classified
  • Onwards, Ever Striding Onwards
    • View Profile
    • Email
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #7 on: October 15, 2013, 1000 UTC »
If you want to run any recordings again, the SSTV was in Scottie2
Logged
Echo One - Bringing An English Eccentricity To The Air Waves

reportecho1@gmail.com

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32511
    • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #8 on: October 15, 2013, 1207 UTC »
The extremely slanted image is an indicator of a severe timing problem. This can happen if the SSTV software used to generate the image is not properly calibrated, or can be induced by encoding the audio as an mp3 or other compressed format. I did decode two of the images, and had to make huge adjustments to the timing a lot to get rid of the slant.



« Last Edit: October 15, 2013, 1211 UTC by ChrisSmolinski »
Logged
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline Echo_One

  • Group W Bench
  • Sr. Member
  • *
  • Posts: 418
    • Classified
  • Onwards, Ever Striding Onwards
    • View Profile
    • Email
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #9 on: October 15, 2013, 1214 UTC »
Quote from: ChrisSmolinski on October 15, 2013, 1207 UTC
The extremely slanted image is an indicator of a severe timing problem. This can happen if the SSTV software used to generate the image is not properly calibrated, or can be induced by encoding the audio as an mp3 or other compressed format. I did decode two of the images, and had to make huge adjustments to the timing a lot to get rid of the slant.





The only way for me to save the SSTV audio is by recoding in WAV and then implanting into the show which saves as WMA.

For the record, the images are

1. Pikachu

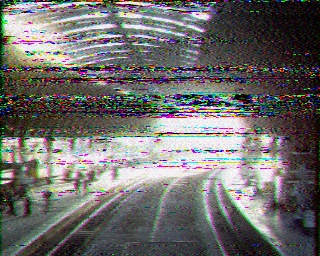

2. York Railway Station (an awesome place to go spotting - and I took the picture myself)

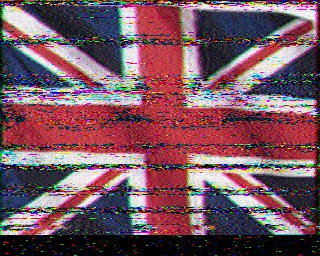

3. Union Jack
« Last Edit: October 15, 2013, 1221 UTC by Echo_One »
Logged
Echo One - Bringing An English Eccentricity To The Air Waves

reportecho1@gmail.com

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32511
    • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #10 on: October 15, 2013, 1221 UTC »
Keeping the show as a WAV file would eliminate the timing problem, but the resulting audio files would be huge. You could keep the SSTV as a separate audio file in WAV format, and send the program audio as an mp3 or WMA or whatever, but that might be a hassle for your relay operator?

Also, for whatever reason, I have noticed that SSTV images, when transmitted in AM mode, often looked "washed out". I'm not sure if this is due to the transmitting or receiving side (or both). IIRC I've sometimes demodulated them in SSB mode, resulting in a slightly better image.
Logged
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline Echo_One

  • Group W Bench
  • Sr. Member
  • *
  • Posts: 418
    • Classified
  • Onwards, Ever Striding Onwards
    • View Profile
    • Email
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #11 on: October 15, 2013, 1228 UTC »
It could be a hassle, but it is something to think about... I will discuss with my relay operator as you suggest.

Anyway, where you heard me from, did I bury the Peskies?

How did the first image come out? The Pikachu one
Logged
Echo One - Bringing An English Eccentricity To The Air Waves

reportecho1@gmail.com

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32511
    • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #12 on: October 15, 2013, 1230 UTC »
Yes, the signal from the first transmission was strong. The later show, around 0200z, was quite weak.

The first SSTV image was split between two SDR recording files, so I didn't decode it.
Logged
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline PRBRELAYS

  • Jr. Member
  • **
  • Posts: 38
    • View Profile
    • Email
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #13 on: October 15, 2013, 1713 UTC »
It's all my fault, I took the file and saved it as an mp3 file! :(
Logged

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32511
    • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Radio Echo One 6925 AM 2227 UTC 14 Oct 2013
« Reply #14 on: October 15, 2013, 1754 UTC »
Quote from: PRBRELAYS on October 15, 2013, 1713 UTC
It's all my fault, I took the file and saved it as an mp3 file! :(

It would be interesting to run the original WMA file through an SSTV decoder, and see if the slant issue is there as well.
Logged
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree
