Irregular dashes 6940 1025 UTC 16 Aug 2016
« on: August 16, 2016, 1216 UTC »
First noted live at 1130z, but upon checking the SDR recording, I observe them starting at 1025z.
These are not regularly spaced dashes with a fixed period, but instead are intermittent. The signal is quite strong.
Gone by 1135z. But then more dashes heard starting 1213z, but with a long dead time between them.

I checked between 5 and 9 MHz and did not observe any other dashes, so I don't think this is one of the occasionally observed dasher networks. I am not sure of the source, whether hobbyist beacon, or some organization. Might be worth hanging out on 6940, or checking your SDR recordings.

Further checking back in the SDR recording, I see the dasher was here as early as 0254.

This is pure speculation... but this pattern fits perfectly with a beacon that transmits dits based on wind speed.
« Last Edit: August 16, 2016, 1353 UTC by ChrisSmolinski »
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32460
  • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #1 on: August 18, 2016, 1242 UTC »
Now on 6943 this morning at 1242z, good signal.
Sorry, I had the radio in the wrong sideband. It is still on 6940, and still hearing occasional dashes at 1615z.
« Last Edit: August 18, 2016, 1615 UTC by ChrisSmolinski »
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32460
  • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #2 on: August 21, 2016, 2027 UTC »

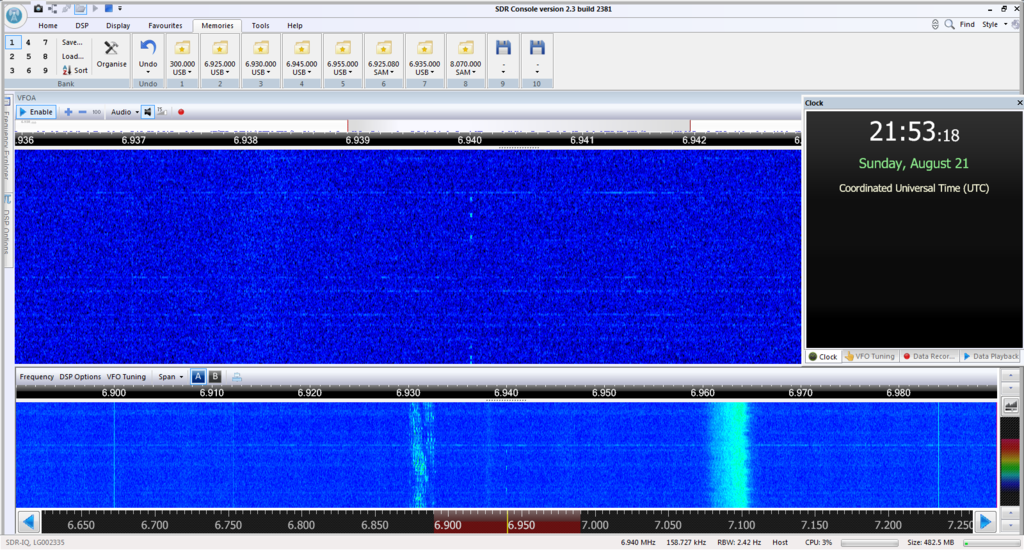

Heard again 21 August 2016 at 2025z with irregularly spaced dashes. I still suspect it is a hobbyist beacon, and could be transmitting dashes based on the wind speed.
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline jFarley

  • Marconi Class DXer
  • ********
  • Posts: 5921
  • near Chicago
    • View Profile
    • Email
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #3 on: August 21, 2016, 2122 UTC »
I have been looking for this since Chris first posted, w/o luck.  Noting them now around 2122z w/ a fair to good signal.

« Last Edit: August 21, 2016, 2156 UTC by jFarley »
Joe Farley, Near Chicago
SDR-IQ / R8 / R7
Remote Resonant Loops for HF and LF / ALA 1530
Active 60" Whip / PA0RDT
QSLS appreciated to:    jfarley44@att.net

Offline Kilokat7

  • Global Moderator
  • DX Legend
  • *****
  • Posts: 1455
  • West Michigan
  • FFFR
    • View Profile
    • Kilokat7 DX
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #4 on: August 22, 2016, 0117 UTC »
Good copy here @ 0116z, irregularly spaced as noted above.
PLS QSL kilokat7(at)gmail.com
Location: Western Michigan
Perseus SDR / DKAZ loops
West Michigan DX

Offline Token

  • Global Moderator
  • DX Legend
  • *****
  • Posts: 2142
    • View Profile
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #5 on: August 22, 2016, 0142 UTC »
I have been hearing these off and on since August 11.  They are never strong here, never heard during broad daylight, but often start fading in about an hour and a half before sundown.  The dashes appear to be about 0.295 second long, and the rate is very irregular, sometimes many seconds between each.

(edit) And at 0205 I have it weak but copiable on the Twente SDR in the Netherlands.

T!
« Last Edit: August 22, 2016, 0208 UTC by Token »
T!
Mojave Desert, California USA

Offline MDK2

  • Marconi Class DXer
  • ********
  • Posts: 6323
  • Denver, CO
    • View Profile
    • My radio reception videos
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #6 on: August 22, 2016, 0203 UTC »
Is this transmitting in AM mode?

EDIT Thanks T! for the reply and the tip. Copying on utwente right now.
« Last Edit: August 22, 2016, 0215 UTC by MDK2 »
Denver, CO.
SDRPlay RSPdx & RSP2pro, Airspy Discovery HF+, Icom IC-7100, Grundig Satellit 750, Realistic DX-300, Tecsun PL-600.
MLA-30 active loop, G5RV dipole.
eQSLs appreciated wickerjennie at gmail

Offline Token

  • Global Moderator
  • DX Legend
  • *****
  • Posts: 2142
    • View Profile
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #7 on: August 22, 2016, 0210 UTC »
Is this transmitting in AM mode?

It is, as near as I can tell, unmodulated CW, dashes, just like Morse Code, but only sending one length element, over and over, with irregular spacing, sometimes over a minute between dashes, sometimes only a few seconds.  Occasionally it will send 4 closely spaced dashes.

T!
« Last Edit: August 22, 2016, 0248 UTC by Token »
T!
Mojave Desert, California USA

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32460
  • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #8 on: August 22, 2016, 2024 UTC »
I noticed this on my overnight SDR recording, transmitting as usual with random dashes (or dits, depending on your point of view).
Last observed at 0910, and I do not notice it on the air today.
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline Token

  • Global Moderator
  • DX Legend
  • *****
  • Posts: 2142
    • View Profile
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #9 on: November 26, 2016, 0451 UTC »
This appears back at 0430 UTC on Nov 26 2016.

T!
T!
Mojave Desert, California USA

Offline ChrisSmolinski

  • Administrator
  • Marconi Class DXer
  • *****
  • Posts: 32460
  • Westminster, MD USA
    • View Profile
    • Black Cat Systems
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #10 on: November 26, 2016, 1527 UTC »
Noted here first at 0329Z 26 Nov 2016 on the SDR recording, sending actual CW before sending the dashes.  Token decoded the CW as:
37 87 30 37 87 30 37 87 30 37 87 30 WKN WKN WKN AR
Chris Smolinski
Westminster, MD
eQSLs appreciated! csmolinski@blackcatsystems.com
netSDR / AFE822x / AirSpy HF+ / KiwiSDR / 900 ft Horz skyloop / 500 ft NE beverage / 250 ft V Beam / 58 ft T2FD / 120 ft T2FD / 400 ft south beverage / 43m, 20m, 10m  dipoles / Crossed Parallel Loop / Discone in a tree

Offline Token

  • Global Moderator
  • DX Legend
  • *****
  • Posts: 2142
    • View Profile
Re: Irregular dashes 6940 1025 UTC 16 Aug 2016
« Reply #11 on: November 26, 2016, 1637 UTC »
Looking back through my logs I find the first log entry for this dasher on Aug 11, 2016.  The first recording I find in my server is Aug 12, 2016.  But there is a very similar signal recorded April 28, 2016, that could be related.

T!

T!
Mojave Desert, California USA
