Hello everyone!

I just finnished a small transmitter, made from a design called El Pititico. Its a one transistor transmitter that also has a low pass filter and is surprisingly stable. It puts out 850mW after the low pass filter. It draws about 140mA in TX using 12v supply, im really happy with this design. The enclosure is printed in PLA, with a 3d printer. The 2n2222a transistor gets really hot, but it seams to be able to handle it.

When keying the TX with a BC547c i only get about 650mW on the TX, but using a 13,8v supply i guess it will get a bit higher. The Arduino Micro draws 42mA in stand by current, i will have to look at reducing that.



I found a nice program for the arduino so it can transmitt Hellschreiber:

Code: [Select]

int radioPin = 13 ;
int sensorvalue;

typedef struct glyph {
    char ch ;
    word col[7] ;
} Glyph ;

const Glyph glyphtab[] PROGMEM = {
{' ', {0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'A', {0x07fc, 0x0e60, 0x0c60, 0x0e60, 0x07fc, 0x0000, 0x0000}},
{'B', {0x0c0c, 0x0ffc, 0x0ccc, 0x0ccc, 0x0738, 0x0000, 0x0000}},
{'C', {0x0ffc, 0x0c0c, 0x0c0c, 0x0c0c, 0x0c0c, 0x0000, 0x0000}},
{'D', {0x0c0c, 0x0ffc, 0x0c0c, 0x0c0c, 0x07f8, 0x0000, 0x0000}},
{'E', {0x0ffc, 0x0ccc, 0x0ccc, 0x0c0c, 0x0c0c, 0x0000, 0x0000}},
{'F', {0x0ffc, 0x0cc0, 0x0cc0, 0x0c00, 0x0c00, 0x0000, 0x0000}},
{'G', {0x0ffc, 0x0c0c, 0x0c0c, 0x0ccc, 0x0cfc, 0x0000, 0x0000}},
{'H', {0x0ffc, 0x00c0, 0x00c0, 0x00c0, 0x0ffc, 0x0000, 0x0000}},
{'I', {0x0ffc, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'J', {0x003c, 0x000c, 0x000c, 0x000c, 0x0ffc, 0x0000, 0x0000}},
{'K', {0x0ffc, 0x00c0, 0x00e0, 0x0330, 0x0e1c, 0x0000, 0x0000}},
{'L', {0x0ffc, 0x000c, 0x000c, 0x000c, 0x000c, 0x0000, 0x0000}},
{'M', {0x0ffc, 0x0600, 0x0300, 0x0600, 0x0ffc, 0x0000, 0x0000}},
{'N', {0x0ffc, 0x0700, 0x01c0, 0x0070, 0x0ffc, 0x0000, 0x0000}},
{'O', {0x0ffc, 0x0c0c, 0x0c0c, 0x0c0c, 0x0ffc, 0x0000, 0x0000}},
{'P', {0x0c0c, 0x0ffc, 0x0ccc, 0x0cc0, 0x0780, 0x0000, 0x0000}},
{'Q', {0x0ffc, 0x0c0c, 0x0c3c, 0x0ffc, 0x000f, 0x0000, 0x0000}},
{'R', {0x0ffc, 0x0cc0, 0x0cc0, 0x0cf0, 0x079c, 0x0000, 0x0000}},
{'S', {0x078c, 0x0ccc, 0x0ccc, 0x0ccc, 0x0c78, 0x0000, 0x0000}},
{'T', {0x0c00, 0x0c00, 0x0ffc, 0x0c00, 0x0c00, 0x0000, 0x0000}},
{'U', {0x0ff8, 0x000c, 0x000c, 0x000c, 0x0ff8, 0x0000, 0x0000}},
{'V', {0x0ffc, 0x0038, 0x00e0, 0x0380, 0x0e00, 0x0000, 0x0000}},
{'W', {0x0ff8, 0x000c, 0x00f8, 0x000c, 0x0ff8, 0x0000, 0x0000}},
{'X', {0x0e1c, 0x0330, 0x01e0, 0x0330, 0x0e1c, 0x0000, 0x0000}},
{'Y', {0x0e00, 0x0380, 0x00fc, 0x0380, 0x0e00, 0x0000, 0x0000}},
{'Z', {0x0c1c, 0x0c7c, 0x0ccc, 0x0f8c, 0x0e0c, 0x0000, 0x0000}},
{'0', {0x07f8, 0x0c0c, 0x0c0c, 0x0c0c, 0x07f8, 0x0000, 0x0000}},
{'1', {0x0300, 0x0600, 0x0ffc, 0x0000, 0x0000, 0x0000, 0x0000}},
{'2', {0x061c, 0x0c3c, 0x0ccc, 0x078c, 0x000c, 0x0000, 0x0000}},
{'3', {0x0006, 0x1806, 0x198c, 0x1f98, 0x00f0, 0x0000, 0x0000}},
{'4', {0x1fe0, 0x0060, 0x0060, 0x0ffc, 0x0060, 0x0000, 0x0000}},
{'5', {0x000c, 0x000c, 0x1f8c, 0x1998, 0x18f0, 0x0000, 0x0000}},
{'6', {0x07fc, 0x0c66, 0x18c6, 0x00c6, 0x007c, 0x0000, 0x0000}},
{'7', {0x181c, 0x1870, 0x19c0, 0x1f00, 0x1c00, 0x0000, 0x0000}},
{'8', {0x0f3c, 0x19e6, 0x18c6, 0x19e6, 0x0f3c, 0x0000, 0x0000}},
{'9', {0x0f80, 0x18c6, 0x18cc, 0x1818, 0x0ff0, 0x0000, 0x0000}},
{'*', {0x018c, 0x0198, 0x0ff0, 0x0198, 0x018c, 0x0000, 0x0000}},
{'.', {0x001c, 0x001c, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'?', {0x1800, 0x1800, 0x19ce, 0x1f00, 0x0000, 0x0000, 0x0000}},
{'!', {0x1f9c, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'(', {0x01e0, 0x0738, 0x1c0e, 0x0000, 0x0000, 0x0000, 0x0000}},
{')', {0x1c0e, 0x0738, 0x01e0, 0x0000, 0x0000, 0x0000, 0x0000}},
{'#', {0x0330, 0x0ffc, 0x0330, 0x0ffc, 0x0330, 0x0000, 0x0000}},
{'$', {0x078c, 0x0ccc, 0x1ffe, 0x0ccc, 0x0c78, 0x0000, 0x0000}},
{'/', {0x001c, 0x0070, 0x01c0, 0x0700, 0x1c00, 0x0000, 0x0000}},
} ;

#define NGLYPHS         (sizeof(glyphtab)/sizeof(glyphtab[0]))

void
encodechar(int ch)
{
    int i, x, y, fch ;
    word fbits ;

    /* It looks sloppy to continue searching even after you've
     * found the letter you are looking for, but it makes the
     * timing more deterministic, which will make tuning the
     * exact timing a bit simpler.
     */
    for (i=0; i<NGLYPHS; i++) {
        fch = pgm_read_byte(&glyphtab[i].ch) ;
        if (fch == ch) {
            for (x=0; x<7; x++) {
                fbits = pgm_read_word(&(glyphtab[i].col[x])) ;
                for (y=0; y<14; y++) {
                    if (fbits & (1<<y))
                        digitalWrite(radioPin, HIGH) ;
                    else
                        digitalWrite(radioPin, LOW) ;

                    delayMicroseconds(4045L) ;
                }
            }
        }
    }
}

void
encode(char *ch)
{
    while (*ch != '\0')
        encodechar(*ch++) ;
}

void
setup()
{
  Serial.begin(9600) ;
  pinMode(radioPin, OUTPUT) ;
}


void
loop()
{

    sensorvalue = analogRead(A0);

    encode("CQ TEST CQ TEST ") ;

}
The TX is designed by PY2OHH and refined by DX explorer on youtube. The Arduino code is from the link below, at Brainwagon.org

https://brainwagon.org/2012/01/11/hellduino-sending-hellschreiber-from-an-arduino/

[Elf36]

Nice job. It looks great. What frequency will you be transmitting on? I'll try to remember to keep an ear out for it.

[Teotwaki]

A simple power reduction mod for the Arduino is to desolder the chip resistor that feeds the always on red LED labeled "POW" for power.

[Radiotech]

I finnished the code, it waits for 5 minutes and then transmitts temperature and voltage, if the voltage is above 10v. I am going to have it on my balcony with a dummy load for a few days to find any bugs. I also named the beacon "Gray1"

It transmitts on 7000,5kHz, 40m band, but i would like to move it up a bit before connecting an antenna.

I will try to do some desoldering on the board to lower consumption!

Code: [Select]

int radioPin = A0 ;
int sensorvaluetemp;
int sensorvaluevolt;
int displaytemp;
char buf1[10];
char buf2[10];
int timer;

typedef struct glyph {
    char ch ;
    word col[7] ;
} Glyph ;

const Glyph glyphtab[] PROGMEM = {
{' ', {0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'A', {0x07fc, 0x0e60, 0x0c60, 0x0e60, 0x07fc, 0x0000, 0x0000}},
{'B', {0x0c0c, 0x0ffc, 0x0ccc, 0x0ccc, 0x0738, 0x0000, 0x0000}},
{'C', {0x0ffc, 0x0c0c, 0x0c0c, 0x0c0c, 0x0c0c, 0x0000, 0x0000}},
{'D', {0x0c0c, 0x0ffc, 0x0c0c, 0x0c0c, 0x07f8, 0x0000, 0x0000}},
{'E', {0x0ffc, 0x0ccc, 0x0ccc, 0x0c0c, 0x0c0c, 0x0000, 0x0000}},
{'F', {0x0ffc, 0x0cc0, 0x0cc0, 0x0c00, 0x0c00, 0x0000, 0x0000}},
{'G', {0x0ffc, 0x0c0c, 0x0c0c, 0x0ccc, 0x0cfc, 0x0000, 0x0000}},
{'H', {0x0ffc, 0x00c0, 0x00c0, 0x00c0, 0x0ffc, 0x0000, 0x0000}},
{'I', {0x0ffc, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'J', {0x003c, 0x000c, 0x000c, 0x000c, 0x0ffc, 0x0000, 0x0000}},
{'K', {0x0ffc, 0x00c0, 0x00e0, 0x0330, 0x0e1c, 0x0000, 0x0000}},
{'L', {0x0ffc, 0x000c, 0x000c, 0x000c, 0x000c, 0x0000, 0x0000}},
{'M', {0x0ffc, 0x0600, 0x0300, 0x0600, 0x0ffc, 0x0000, 0x0000}},
{'N', {0x0ffc, 0x0700, 0x01c0, 0x0070, 0x0ffc, 0x0000, 0x0000}},
{'O', {0x0ffc, 0x0c0c, 0x0c0c, 0x0c0c, 0x0ffc, 0x0000, 0x0000}},
{'P', {0x0c0c, 0x0ffc, 0x0ccc, 0x0cc0, 0x0780, 0x0000, 0x0000}},
{'Q', {0x0ffc, 0x0c0c, 0x0c3c, 0x0ffc, 0x000f, 0x0000, 0x0000}},
{'R', {0x0ffc, 0x0cc0, 0x0cc0, 0x0cf0, 0x079c, 0x0000, 0x0000}},
{'S', {0x078c, 0x0ccc, 0x0ccc, 0x0ccc, 0x0c78, 0x0000, 0x0000}},
{'T', {0x0c00, 0x0c00, 0x0ffc, 0x0c00, 0x0c00, 0x0000, 0x0000}},
{'U', {0x0ff8, 0x000c, 0x000c, 0x000c, 0x0ff8, 0x0000, 0x0000}},
{'V', {0x0ffc, 0x0038, 0x00e0, 0x0380, 0x0e00, 0x0000, 0x0000}},
{'W', {0x0ff8, 0x000c, 0x00f8, 0x000c, 0x0ff8, 0x0000, 0x0000}},
{'X', {0x0e1c, 0x0330, 0x01e0, 0x0330, 0x0e1c, 0x0000, 0x0000}},
{'Y', {0x0e00, 0x0380, 0x00fc, 0x0380, 0x0e00, 0x0000, 0x0000}},
{'Z', {0x0c1c, 0x0c7c, 0x0ccc, 0x0f8c, 0x0e0c, 0x0000, 0x0000}},
{'0', {0x07f8, 0x0c0c, 0x0c0c, 0x0c0c, 0x07f8, 0x0000, 0x0000}},
{'1', {0x0300, 0x0600, 0x0ffc, 0x0000, 0x0000, 0x0000, 0x0000}},
{'2', {0x061c, 0x0c3c, 0x0ccc, 0x078c, 0x000c, 0x0000, 0x0000}},
{'3', {0x0006, 0x1806, 0x198c, 0x1f98, 0x00f0, 0x0000, 0x0000}},
{'4', {0x1fe0, 0x0060, 0x0060, 0x0ffc, 0x0060, 0x0000, 0x0000}},
{'5', {0x000c, 0x000c, 0x1f8c, 0x1998, 0x18f0, 0x0000, 0x0000}},
{'6', {0x07fc, 0x0c66, 0x18c6, 0x00c6, 0x007c, 0x0000, 0x0000}},
{'7', {0x181c, 0x1870, 0x19c0, 0x1f00, 0x1c00, 0x0000, 0x0000}},
{'8', {0x0f3c, 0x19e6, 0x18c6, 0x19e6, 0x0f3c, 0x0000, 0x0000}},
{'9', {0x0f80, 0x18c6, 0x18cc, 0x1818, 0x0ff0, 0x0000, 0x0000}},
{'*', {0x018c, 0x0198, 0x0ff0, 0x0198, 0x018c, 0x0000, 0x0000}},
{'.', {0x001c, 0x001c, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'?', {0x1800, 0x1800, 0x19ce, 0x1f00, 0x0000, 0x0000, 0x0000}},
{'!', {0x1f9c, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000}},
{'(', {0x01e0, 0x0738, 0x1c0e, 0x0000, 0x0000, 0x0000, 0x0000}},
{')', {0x1c0e, 0x0738, 0x01e0, 0x0000, 0x0000, 0x0000, 0x0000}},
{'#', {0x0330, 0x0ffc, 0x0330, 0x0ffc, 0x0330, 0x0000, 0x0000}},
{'$', {0x078c, 0x0ccc, 0x1ffe, 0x0ccc, 0x0c78, 0x0000, 0x0000}},
{'/', {0x001c, 0x0070, 0x01c0, 0x0700, 0x1c00, 0x0000, 0x0000}},
} ;

#define NGLYPHS         (sizeof(glyphtab)/sizeof(glyphtab[0]))

void
encodechar(int ch)
{
    int i, x, y, fch ;
    word fbits ;

    /* It looks sloppy to continue searching even after you've
     * found the letter you are looking for, but it makes the
     * timing more deterministic, which will make tuning the
     * exact timing a bit simpler.
     */
    for (i=0; i<NGLYPHS; i++) {
        fch = pgm_read_byte(&glyphtab[i].ch) ;
        if (fch == ch) {
            for (x=0; x<7; x++) {
                fbits = pgm_read_word(&(glyphtab[i].col[x])) ;
                for (y=0; y<14; y++) {
                    if (fbits & (1<<y))
                        digitalWrite(radioPin, HIGH) ;
                    else
                        digitalWrite(radioPin, LOW) ;

                    delayMicroseconds(4045L) ;
                }
            }
        }
    }
}

void
encode(char *ch)
{
    while (*ch != '\0')
        encodechar(*ch++) ;
}

void
setup()
{
  Serial.begin(9600) ;
  pinMode(radioPin, OUTPUT) ;
}


void
loop()
{
while(timer < 300) //delay transmitt för 5 minutes
  {
  delay(1000);
  timer++;
  }
timer = 0;

sensorvaluetemp = analogRead(A3);
sensorvaluevolt = analogRead(A2);
itoa(sensorvaluetemp,buf1,10);
itoa(sensorvaluevolt/11,buf2,10);

while(sensorvaluevolt <= 107) //Dont transmitt if voltage is below 10,5v
  {
  delay(10000);
  sensorvaluevolt = analogRead(A2);
  }

encode("BEACON GRAY1 TEMP IS ") ;
if(sensorvaluetemp < 140)
  {
  displaytemp = (140 - sensorvaluetemp)*2;
  itoa(displaytemp, buf1,10);
  encode(buf1);
  encode("C ");
  }
else
  {
  displaytemp = (sensorvaluetemp -140)*2;
  itoa(displaytemp,buf1,10);
  encode("-");
  encode(buf1);
  encode("C ");
  }

encode("VOLTAGE IS ");
encode(buf2);
encode("V");
}

[Teotwaki]

"The 2n2222a transistor gets really hot, but it seams to be able to handle it."

That is because when the switch labeled "key" is closed the full power supply voltage is being applied across the transistor without any current limiting resistor in series. At the least you can add a free air push-on heatsink from Wakefield or similar

[QRP]

Try putting the diode in series with the crystal against earth instead. 👍

[Teotwaki]

Try putting the diode in series with the crystal against earth instead. 👍

That is meant to be a ground symbol. It’s not a series diode.

[QRP]

Try putting the diode in series with the crystal I this way:

---diod---xtal---earth

Did you get it? 😄

[Teotwaki]

Try putting the diode in series with the crystal I this way:

---diod---xtal---earth

Did you get it? 😄

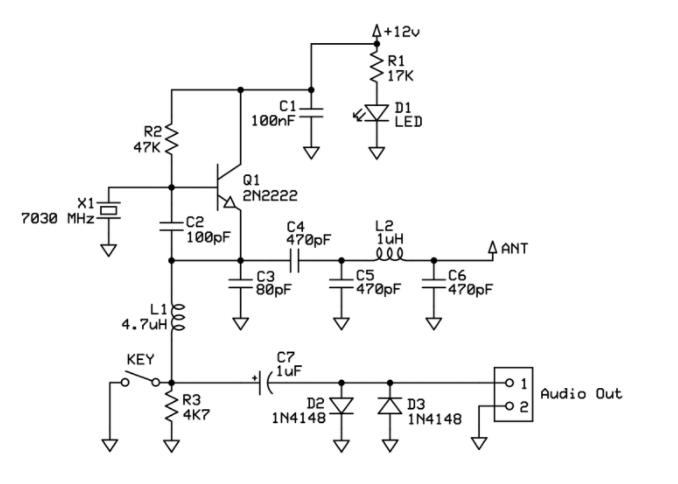

What diode are you talking about? in the original diagram the crystal is connected between the base of the transistor and ground ( also means earth). In eleven places on the diagram the upside down triangle is a ground symbol. The only diodes present are  the D2 & D3 to rectify the RF and D1 the LED.

[QRP]

Have a close look att the Xtal 7030 MHz
and between XTAL and earth there is a diode.
Can you see it now? 😊

See figure in this link:
https://ham.se/attachments/diod-png.7738/

[Teotwaki]

Have a close look att the Xtal 7030 MHz
and between XTAL and earth there is a diode.
Can you see it now? 😊

Based on your incorrect assumption there are 11 diodes between ground and the following components in the diagram

D1
C1
X1
C3
C5
C6
Key
R3
D2
D3
Audio pin 2

Do you see how wrong you are now?

Those are ground symbols.

Look at component D2’s symbol: a triangle with a bar across the pointy end of the triangle. THAT is a diode symbol.

[Teotwaki]

Common circuit diagram ground symbols



Circuit diagram symbol for an ordinary diode

[Stretchyman]

Christ, the post has become tiresome!

Yeh it's not a diode we get that.

I think the idea WAS to insert one for some reason?

Anyway, single device running flat out getting so hot it needs a heatsink.

There are way better designs.

Simple = compromised.

Osc-buff-class E PA, would use far less current.

[QRP]

You’ve made my day! 🤣

//QRP

[Teotwaki]

Christ, the post has become tiresome!

Yeh it's not a diode we get that.

I think the idea WAS to insert one for some reason?

Glad you got religion but the OP doesn't need to be misled into putting QRP's useless diode in series with the crystal.  I will credit QRP for having a high loss notch filter to assist in ignoring correct information.

Anyway, single device running flat out getting so hot it needs a heatsink.

There are way better designs.

Simple = compromised.

Osc-buff-class E PA, would use far less current.

Agree but the OP built it, can have fun running it and find out how short the life of the 2222 is then build something better. I would be more concerned that the crystal frequency will put the thing in the crowded Amateur 40 meter band. It should be padded to pull it below 7 MHz and be easier to hear at a distance.

To me it's not tiresome if the OP succeeds in having fun without QRP's bad information. If it was a _varactor_ diode then I would concede QRP might know something useful.
